Introduction

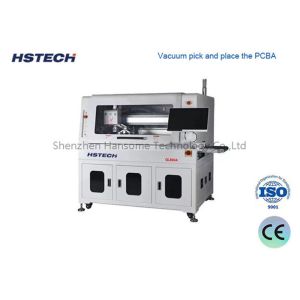

Built on precision and efficiency, this inline automatic PCBA routing machine employs a jig-based system to stabilize the PCBA during bottom-side routing. After routing, an advanced nozzle suction mechanism lifts and positions the PCBA with its jig as a unit. This innovation enables the machine to handle stamp holes, curved PCBs, and other irregular PCB configurations, optimizing workflows and enhancing productivity.
Features
- Vacuum-based system ensures accurate PCBA handling.
- Bottom cutting with precision tailored to PCBA needs.
- Dual-platform cutting boosts productivity.
- Broken knife detection minimizes downtime.
- Seamless integration with automatic production lines.
- SPC stats functionality integrates with ERP for data-driven decisions.
- Optional features: automatic tool change, explosion-proof vacuum, air volume monitoring.
Technical details
| Model | QL800A |
| Max PCB size | 260x340mm |
| Min PCB size | 50x50mm |
| PCB thickness | 0.4-6mm |
| Transmission height | 900±50mm |
| Transport direction | Left to right |
| Transportation speed | 1500mm/s(max) Adjustable |
| Loading mode | Section-type transportation guide rail |
| Rail width adjustment | Automatic |
| Communication interface | SMEMA |
| PCB positioning | Fixtures positioning |
| Picking system | Vacuum suction pick up |
| Cutting spindle/speed | 60,000 rpm/min, Germany brand(optional 100,000 rpm/min, Germany brand) |
| Cooling type | Self cooled type |
| Automatic tool change | optional |
| Break knife check | Yes |
| Separating speed | 5-100mm/s |
| Cutting accuracy | ±0.05mm | |
| Milling kit | φ0.8~φ3.0 right side rotation, shank Tungsten steel |
| Repeat positioning accuracy | ±0.1mm |
| Coordinate moving speed | 1000mm/s |
| Out plate type | ESD belt transportation / batch panel forwarding unit |
| Waste collection | Waste cupboard collection |
| Procedure programming | GERBER drawing import /editing program through visual system |
| Air supply | 5-8 kg/cm³ |
| Power supply | AC380V, 50/60Hz, 3KW |
| Machine size | 1500x850x1600 mm |
| Weight | Appro. 800kg |
Machine size
Bottom size routing and dust collector
Excellent CCD system with imaging camera, moritex lens and measurement - level light source, to support machine calibration,compensation and positioning, with great stability and anti-disturbance capacity.
Omnipotence vacuum suction chuck for picking, placing , unloading, and production.
Composite unloading system, used the ESD anti-static belt to transport the separated product on the top side, and the waster is transported on the bottom side, save much space by this method.
